10 Essential Tips for Using Radial Drilling Machine Z3050x16?
The "Radial Drilling Machine Z3050x16" is an essential tool in the manufacturing world. According to Dr. Henry Lee, a leading expert in machining technologies, “Mastering the Z3050x16 can significantly enhance productivity.” This machine provides versatility for various drilling tasks. Its design allows for easy adjustments and precise operations.
Many users, however, face challenges when using the Radial Drilling Machine Z3050x16. Some struggle to achieve accurate angles or drill depth. Others overlook the importance of proper maintenance. These obstacles can hinder performance and lead to errors.
Proper guidance can make a significant difference. Learning from experienced operators and experts can improve efficiency and reliability. Understanding the nuances of the Radial Drilling Machine Z3050x16 is key. Embracing these tips can set users on the path to mastering this powerful equipment.
Understanding the Basics of the Radial Drilling Machine Z3050x16
The Radial Drilling Machine Z3050x16 stands out for its versatility and efficiency in various drilling applications. Understanding its basic components is crucial for optimal use. The machine features a robust arm that allows for drilling at different angles. This design enables users to drill through materials without repositioning the workpiece constantly. However, misalignment can lead to inaccuracies, requiring users to regularly check their setup.
Familiarity with the controls is equally essential. The Z3050x16 includes a range of speeds and feed settings. Each setting adjusts the drill bit's penetration into materials, impacting the finish quality. Users often underestimate the importance of speed adjustments, which can lead to overheating or excessive wear on drill bits. Regular maintenance and checks can prevent these issues.
Safety should never be overlooked. Operators must wear appropriate protective gear, including goggles and gloves. The machine can be hazardous if misused. Operators should always be mindful of the drill's movement and the workpiece stability. Each session should include a safety check, ensuring all components function correctly. Even experienced users can overlook small details. Regularly revisiting safety protocols is vital for a safe working environment.

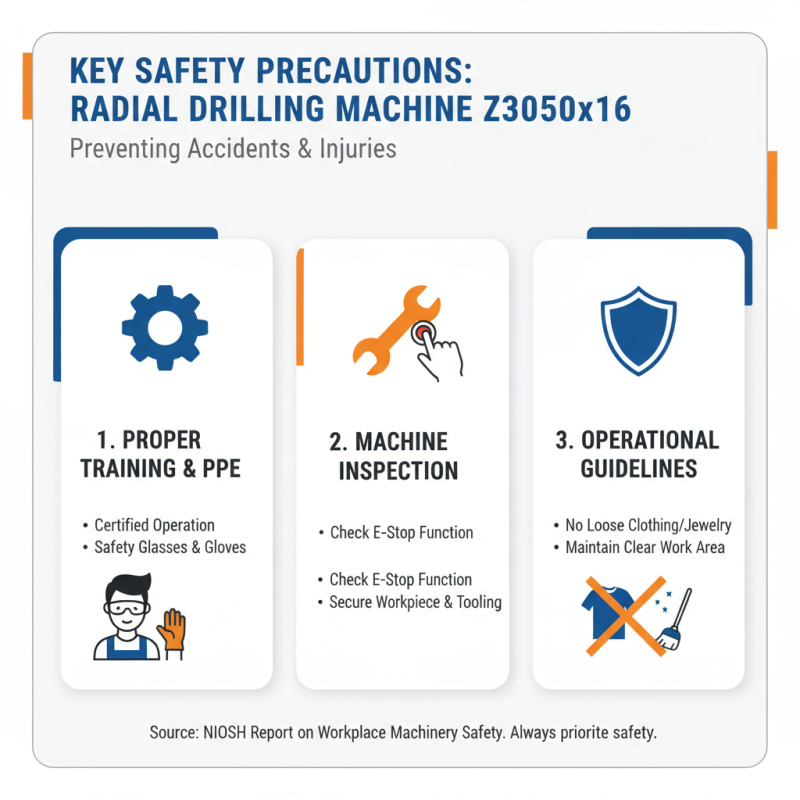

Key Safety Precautions When Operating the Radial Drilling Machine
Operating a radial drilling machine like the Z3050x16 requires attention to safety precautions. These machines can be powerful tools, and proper handling is essential for preventing accidents. According to a report by the National Institute for Occupational Safety and Health (NIOSH), improper use of machinery is a leading cause of workplace injuries.
Before operating, ensure you're wearing the appropriate personal protective equipment (PPE). This includes safety goggles, gloves, and ear protection. These items can significantly reduce the risk of injury. Always check the machine's setup before use. Any loose parts or improper settings can lead to malfunction.
Establish a clear understanding of the machine controls. Familiarify yourself with emergency shutdown procedures. You may find it beneficial to practice basic operations in a controlled environment. Knowledge of these aspects can substantially decrease the likelihood of accidents.
Remember, working slowly and deliberately is crucial. The temptation to rush can lead to errors. Incorporating a buddy system can also enhance safety. Having another person present can provide assistance during challenging operations. Following these steps can help foster a safer workspace while using your radial drilling machine.
Step-by-Step Setup Guide for the Z3050x16 Radial Drilling Machine
Setting up the Z3050x16 radial drilling machine requires careful attention. Start by ensuring your workspace is organized. Clear any clutter and have tools ready. Inspect the machine for any shipping damage. Check that all components are intact. Proper setup prevents issues later on.
Once you have inspected the machine, ensure it is leveled correctly. Use a spirit level to check the base. Adjust the leveling feet as necessary. It helps in maintaining precision. Next, secure the radial arm and ensure it's tight. A loose arm can lead to inaccuracies during drilling.
Power up the machine and test it at a low speed. Listen for unusual noises. If something feels off, stop and reassess. Lubricate moving parts regularly. Neglecting maintenance can impact performance. Lastly, familiarize yourself with the controls. Each button has its purpose. Knowing them enhances efficiency and safety.
Essential Maintenance Tips to Extend the Lifespan of Your Machine
Maintaining the Z3050x16 radial drilling machine is essential for its longevity. Regular maintenance ensures smooth operation and reduces costly repairs. One key aspect is lubrication. Ensure all moving parts are well-lubricated to minimize wear. Use quality oils and grease specifically designed for machinery. Periodically check the oil levels and refill as needed.
Another tip involves cleaning the machine after each use. Dust and debris can hinder performance. Use a soft brush or cloth to remove particles. Pay special attention to areas around the motor and drill bits. A clean machine not only works better but also extends its lifespan.
Monitor component wear regularly. Look for signs of damage, like rust or cracks. Replace worn parts promptly to prevent further issues. Ignoring these signs can lead to larger problems down the line. Document your maintenance activities. This habit can help track performance and identify patterns over time.
10 Essential Tips for Using Radial Drilling Machine Z3050x16
| Tip Number |
Maintenance Tip |
Frequency |
Comments |
| 1 |
Clean the machine regularly |
Daily |
Prevents dust buildup and ensures smooth operation |
| 2 |
Lubricate moving parts |
Weekly |
Use appropriate grease to minimize friction |
| 3 |
Check power supply connections |
Monthly |
Ensure no loose connections for safety |
| 4 |
Inspect belts and gears |
Monthly |
Replace worn parts to avoid breakdowns |
| 5 |
Calibrate the machine |
Every 6 months |
Ensures precision in drilling operations |
| 6 |
Examine coolant levels |
Weekly |
Maintains optimal performance and extends tool life |
| 7 |
Tighten loose fasteners |
Monthly |
Prevents vibration and improves stability |
| 8 |
Replace worn out drill bits |
As needed |
Ensures efficiency and hole quality |
| 9 |
Store machine properly |
Always |
Protects from environmental factors |
| 10 |
Consult user manual |
Whenever troubleshooting |
Follow specific guidelines for best results |
Common Troubleshooting Techniques for Radial Drilling Machines
Radial drilling machines, such as the Z3050x16, are powerful tools for drilling operations. However, they can encounter several common issues. One common problem is a misalignment of the drill head. This can lead to inaccurate drilling. Regularly check the machine's alignment to ensure precise operations. Use a dial gauge for accurate results. This helps in maintaining the quality of your work.
Another frequent issue is a stuck spindle. This can happen due to debris or lack of lubrication. Ensure that the spindle area is clean and lubricated. It’s crucial to inspect for any metal shavings that may interfere with movement. A stuck spindle can halt work and cause delays. In such cases, take the time to remove the obstruction carefully.
Vibration during drilling is also a concern. Excessive vibration can indicate other underlying problems. Check the workpiece's stability to reduce vibrations. Properly clamping the piece can help prevent movement. If the machine itself vibrates, inspect the motor mounts and drill bit condition. Having a solid understanding of these troubleshooting techniques will enhance your operation.
Radial Drilling Machine Z3050x16 Performance Metrics
This bar chart represents the performance metrics of the Radial Drilling Machine Z3050x16 across different key parameters. Each bar indicates the efficiency level and performance in drilling operations.
